65 Ton C-Type Heat Sink High Speed Punch Press | SAH-65 Stamping Machine

Introduction to the C-Type High-Speed Punch Press

1. Made of high-strength cast iron, with stress relief treatment to ensure long-term precision.

2. Three-round guide post design minimizes dynamic friction to the lowest level.

3. Equipped with a locking system for easier and more direct die clamping.

4. Features a high-performance vibration damping system to extend the press machine's lifespan and prevent external environmental interference.

5. Utilizes world-class digital frequency conversion technology to ensure product quality.

6. The use of a microcomputer controller allows all information, such as press angle, speed, and fault location, to bedisplayed on an independent control console.

7. Additionally equipped with scrap detection, misfeed detection, blow-off system, and special-shaped scissors formore user-friendly operation.

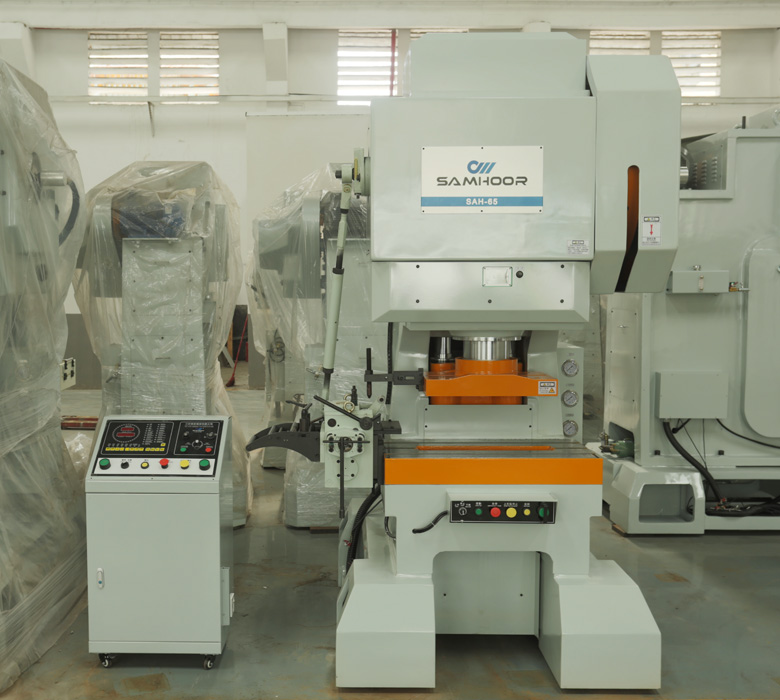

65Ton C-Type Heat Sink High Speed Punch Press

Product Parameter

Main Specification	Unit	Parameter
Capacity	Ton	65
Stroke	mm	25	30	40	50
Stroke Per Minute	S.P.M	200-800	200-700	200-600	200-500
Die-Hight	mm	228-278	225-275	220-275	215-265
Slide Adjustment	mm	50
Slide Area	mm	550*350*70

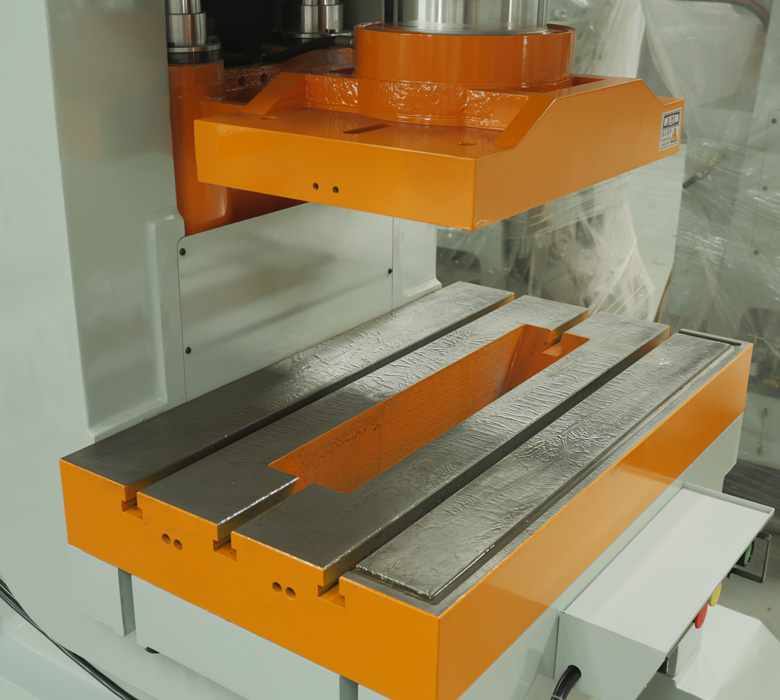

Bolster Area	mm	900*500*110
Bed Opening	mm	460*110
Main Motor	HP	15
Transfer Mold Motor	HP	7.5
Presses Dimension	mm	1750*1300*2630
Presses Precision		GB(JIS) 1 Class

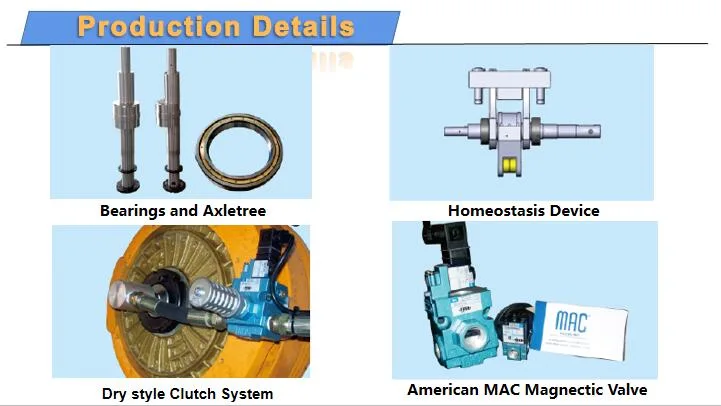

C-Type 65Ton High-Speed Punching Machine Structure Details

Body structure: Made of high-quality high-strength cast iron alloy, this material not only gives the body excellent rigidity and anti-vibration characteristics, but also provides solid support and guarantee for the smooth operation of the machine at high speed.

Power transmission system: The system integrates core components such as motor, flywheel, clutch and brake. Through the carefully designed linkage mechanism, it realizes the effective accumulation and efficient flow of energy, thereby ensuring the rapid response and precise execution of the punching action.

Punching actuator: The mechanism of this high - speed precision punching press is mainly composed of precision components such as sliders and connecting rods. Its sophistication lies in its ability to accurately convert the rotational kinetic energy of the motor into the vertical reciprocating motion of the slider, thereby driving the mold to perform accurate punching operations on metal sheets.

Custom mold: Tailored according to the specific shape and specifications of the punching product, the mold material is wear - resistant, which can ensure that each punching operation can produce a finished product with sharp edges and precise shapes to meet high - quality production needs.

C-type heat sink High Speed Punching Machine is an efficient production equipment designed for heat sink manufacturing. The equipment generally adopts a hydraulic transmission system, has excellent precision and efficiency, and can efficiently complete a series of processing processes such as punching and forming of heat sinks in a very short time. When purchasing a heat sink High Speed Press, you need to focus on several key performance indicators of the equipment: including pressure range, punching rate, workbench size and automation level to ensure that the selected equipment can perfectly match production needs. At the same time, it is also very important to choose a manufacturer with high-quality after-sales service and a good market reputation, which will provide strong guarantees for the stable operation of the equipment and timely technical assistance.

High-speed Punching Machine for Blass Product Advantages Advanced industrial design ideas, low noise, low consumption, and good energy saving. Adoption of high-strength cast iron, which's more resistant to minimal vibration, ensuring stamping accuracy and the service long-life. Microcomputer controls system and few peripheral electrical elements with high stability. Operator can disassemble the board of the press, which is easy for maintenance. Hydraulic overload protector with clutch brake is equipped as a standard feature to cause emergency stop instantly, that can greatly ensure maximum protection for the Precision High Speed ????Punching Presses and die. Using oil lubrication system introduced MPA from USA, which's fully ensuring the high-speed lubrication requirements, reduce oil leakage of the press and remain the cleanliness of the press. American MAC low voltage solenoid valve, low temperature rise, low noise, speed accurate to 1200 times per minute. Adopt Air filtrate system from Taiwan Duplex pieces, the water in the air filter out, to ensure that the gas parts of the press dry and prolong the life.

Production Notice

In addition to choosing high manufacturing accuracy, a reasonable die structure, good heat treatment effects and the correct selection of die accuracy, proper die usage and die maintenance are also very important links.

The following points should be given greater attention:

1. The most important thing is to use the die equipment strictly and correctly.

2.Check the rotating disc and the mounting base of the die on a regular basis to guarantee the coaxial accuracy of the upper and lower rotating discs.

3. After the die is installed, please remember to check whether the fastening screw of the installation base of the die is locked correctly.

4. If the edge of punch and concave die is worn out, you ought to stop using it and grind it in time. Otherwise, the wear degree of the die edge will expand rapidly, the wear of the die will be accelerated, and the processing quality of the High Speed Stamping Machine and the service life of the die will be reduced.

5. The mould should be put back to the designated position in time after use, and be coated with anti-rust oil for rust prevention immediately.

6. To guarantee the service life of the die, the spring of the die should be replaced regularly, which can greatly prevent the fatigue damage of the spring from affecting the use of the die.

7. Last but not least, whether you are using any dies at that time or not, please ensure your own safety.

Product Advantages

1. Adopting advanced industrial design concepts, the machine features low noise, low power consumption and excellent energy-saving performance.

2. High-strength cast iron is adopted, which is highly resistant to slight vibration, guaranteeing stamping precision and long service life.

3. It adopts a microcomputer control system with fewer peripheral electrical components and high stability. Operators can disassemble the press control board for easy maintenance.

4. A hydraulic overload protector equipped with a clutch brake is supplied as standard, which can trigger an immediate emergency stop to provide maximum protection for the press and dies.

5. The machine adopts an MPA oil lubrication system imported from the United States, which fully meets high-speed lubrication requirements, reduces press oil leakage and keeps the equipment clean.

6. It is equipped with American MAC low-voltage solenoid valves featuring low temperature rise, low noise and an operating speed of up to 12,000 times per minute.

7. It adopts the Duplex air filtration system from Taiwan to filter out moisture in the air, ensure that the press’s pneumatic components stay dry and prolong their service life.

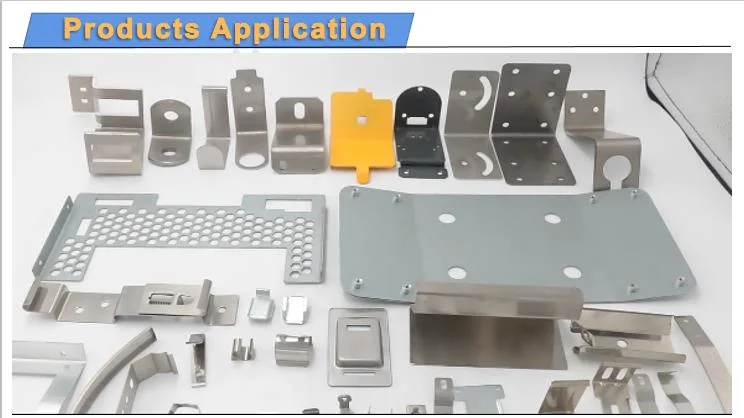

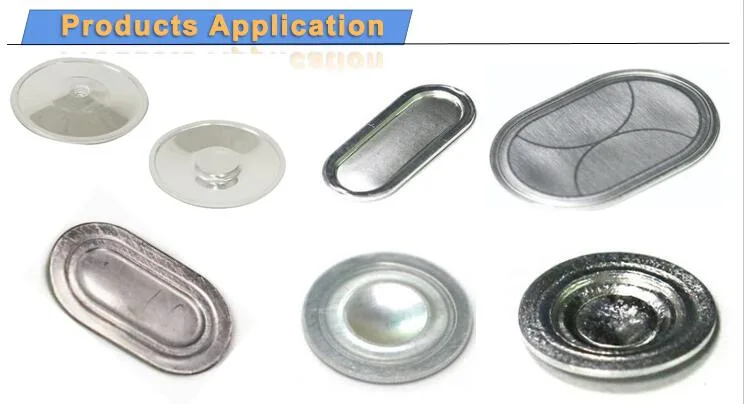

What applications are suitable for heat sink stamping parts?

1. Computer fields: computer motherboards, PCs, IPCs, Servers, PCTVs, Routers, Power Supplies (CPU coolers, VGA coolers, cooling fans).

2. Machinery equipment: industrial equipment, medical devices, auto spare parts, household appliances, etc.

3. LED lighting: stage lights, high bay lights, down lights, street lights, automobile lamps, etc.

4. Security fields: security cameras, infrared illuminated cameras.

5. Home appliances: pico projectors, electronic refrigerators, wine coolers, laser TVs, LCD TVs, LED panels, audio equipment, air conditioners, induction cookers, etc.

Frequenty Asked Questions

Q1. Are you a factory or a trading company?
A1. SaHmoor is a professional manufacturer of high-speed punching machines, boasting over 19 years of experience in the R&D and manufacturing of such equipment. We also have a dedicated trading team that provides import and export services for our products, enabling us to offer you a one-stop procurement solution.

Q2. Do you accept customized orders in your factory?
A2. Yes. We can conduct R&D and production according to customers' requirements, and customize high-speed stamping presses to meet your specific needs.

Q3. Can you help me design a complete stamping production line?
A3. Yes. Please provide the product drawings, and we will offer you the optimal solution.

Q4. Does your factory offer mold customization?
A4. Yes, we can provide and configure stamping dies for high-speed punching machines as per customers’ needs.

Q5. What is your factory's shortest delivery lead time?
A5. The shortest delivery lead time for high-speed presses depends on the complexity of the customer's product and delivery requirements.

Q6. Does SamHoor send engineers to install and commission the equipment on site?
A6. Yes, we have engineers responsible for installation and commissioning, as well as providing comprehensive after-sales service.

Warranty and Service

1. Our press punching machine comes with a full one-year (12-month) warranty. Our company provides after-sales service for the products starting from the buyer's final acceptance date, with a one-year warranty period. (Excluding damage caused by the buyer's improper operation or human error.)

2. We can arrange engineers to provide on-site service, installation and training.

3. All safety warning labels and control panels are in English.

4. An English operation and maintenance manual is supplied together with the press.

5. Technical Support: We offer technical support via email or video. Our technicians are available for overseas service at reasonable extra charges.

6. Installation & Commissioning: The seller may send technicians to carry out installation and commissioning, and the relevant technician expenses shall be borne by the buyer.

APPLICATION AREAS

Silicon Steel Sheet Laminated EI lamination Punch Press

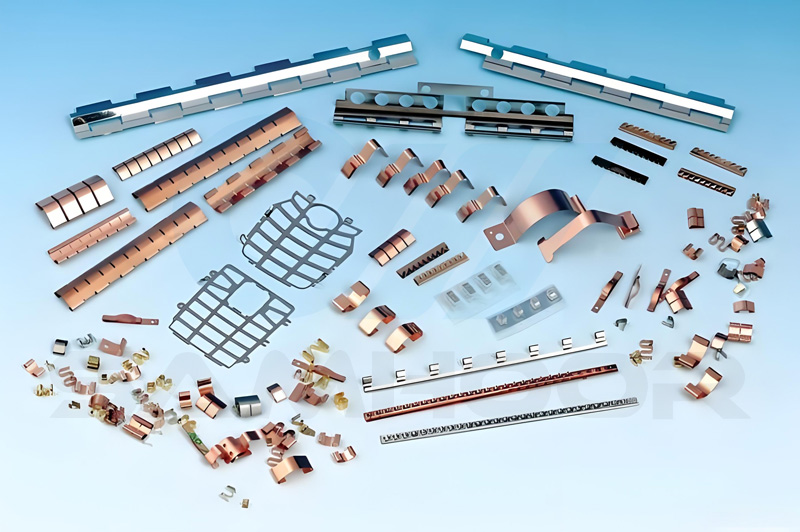

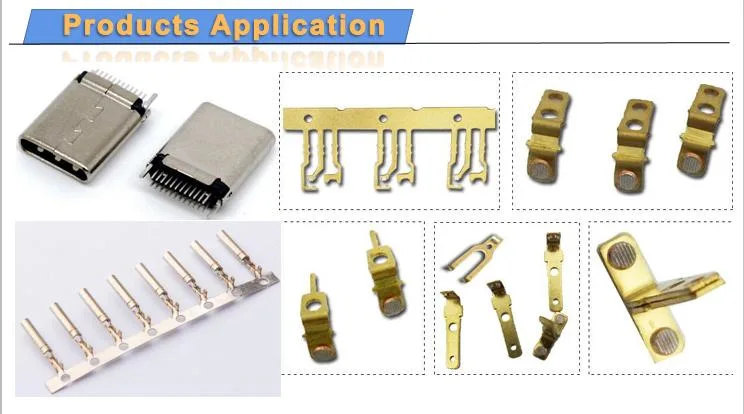

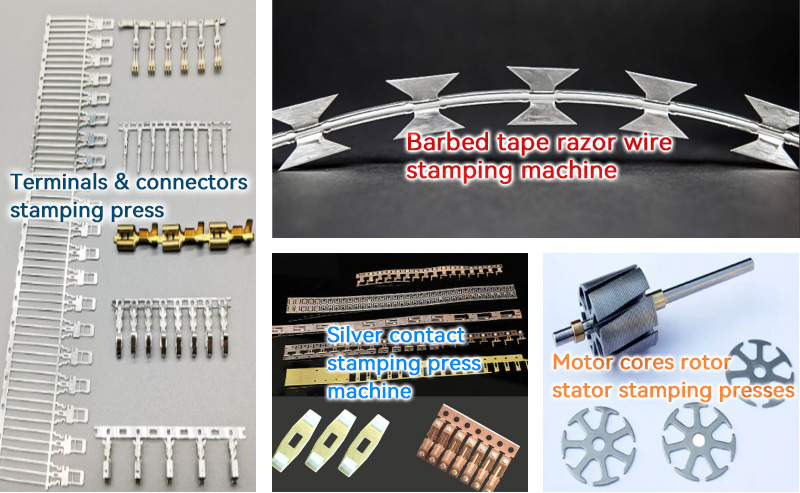

High-speed precision punching machine is a type of metal processing equipment, which is mainly applied to stamping, blanking, piercing, forming and moulding processes. It has a wide range of application scenarios, including the stamping of automotive terminal connectors, mobile phone and computer heat sinks, battery shrapnels, hardware components, motor rotors and stators, EI laminations and other products. The following is a case study of a C-type high-speed punching machine used for stamping silicon steel sheet EI laminations.

The customer provides product drawings, based on which we select the suitable punching machine and feeder. Combined with high-speed dies, the equipment realizes the stamping of EI laminations. Firstly, qualified metal strip raw materials are adopted. The materials are sent to the high-speed punching machine via automatic feeding for stamping inside the die. With the coordinated operation of dies and punching machines, finished products such as automotive terminal connectors and motor laminations are produced. The finished workpieces are conveyed out by a conveyor belt for collection and inspection.

One prominent advantage of high-speed precision punching machines for processing terminal connectors and EI laminations lies in fast stamping speed, high precision and stable product quality. Such equipment can greatly boost production efficiency and improve the overall operational efficiency of enterprises.

High Speed Punching Machine

High Speed Press: C-type High-Speed Punching Machines

Tonnage: 30–80 tons

Raw Materials: Metals such as copper and aluminum

SPM: 200–1000

Application: Air conditioning heating pipe fins
