Introduction to the H-Frame Gantry High-Speed Stamping Press

1. Made of high-strength cast iron, with stress relief treatment to ensure long-term precision.

2. Six-round guide post and dual-center post structure ensure stable production even under eccentric load conditions.

3. Combined with forced lubrication and oil cooling systems to minimize thermal deformation.

4. Equipped with a locking system for easier and more direct die clamping.

5. Features a high-performance vibration damping system to extend the press machine's lifespan and prevent external environmental interference.

6. Utilizes world-class digital frequency conversion technology to ensure product quality.

7. Top dead center stop device effectively protects the die and facilitates die setup.

8. The use of a microcomputer controller allows all information, such as press angle, speed, and fault location, to be displayed on an independent control console.

9. Additionally equipped with scrap detection, misfeed detection, blow-off system, and special-shaped scissors for more user-friendly operation.

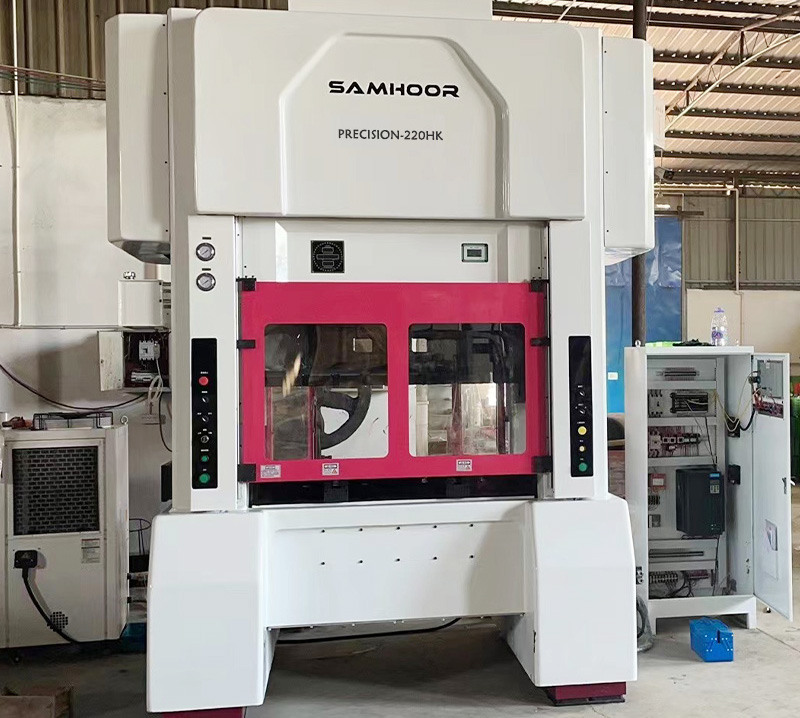

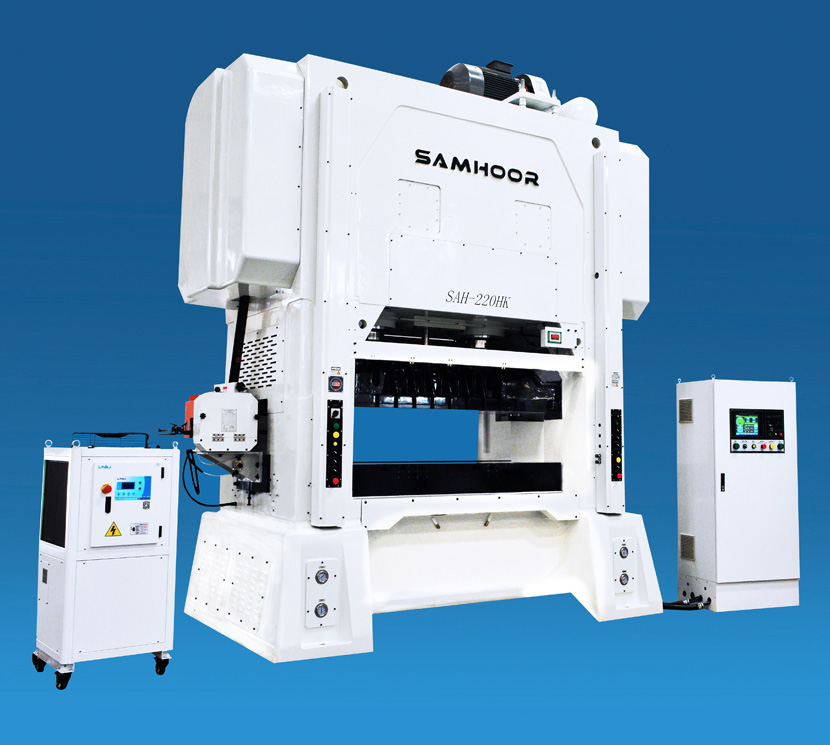

SAMHOOR SAH-220HK 220 Ton Innovative Intelligent High Speed Punch Press for Precision Metal Stamping

220-Ton High-Speed Press, 220-Ton Power Presses, Innovative Design for Punch Presses

Samhoor High-Speed Press Company proudly introduces its new 220-ton high-speed press. This product not only carries forward the stability and efficiency of conventional presses but also integrates a host of innovative technologies to satisfy the strict requirements of modern manufacturing for high precision and high efficiency. When processing automotive parts, electronic components or home appliances, the 220-ton high-speed press delivers outstanding machining performance and guarantees that all finished products comply with top-tier quality standards.

Innovative Highlights:

Intelligent Control System: Adopts an advanced intelligent control system to achieve precise control and boost production efficiency.

Energy Saving & High Efficiency: The optimized design cuts energy consumption and complies with the principles of green manufacturing.

Easy Operation: The streamlined operation process minimizes manual intervention and elevates operational safety.

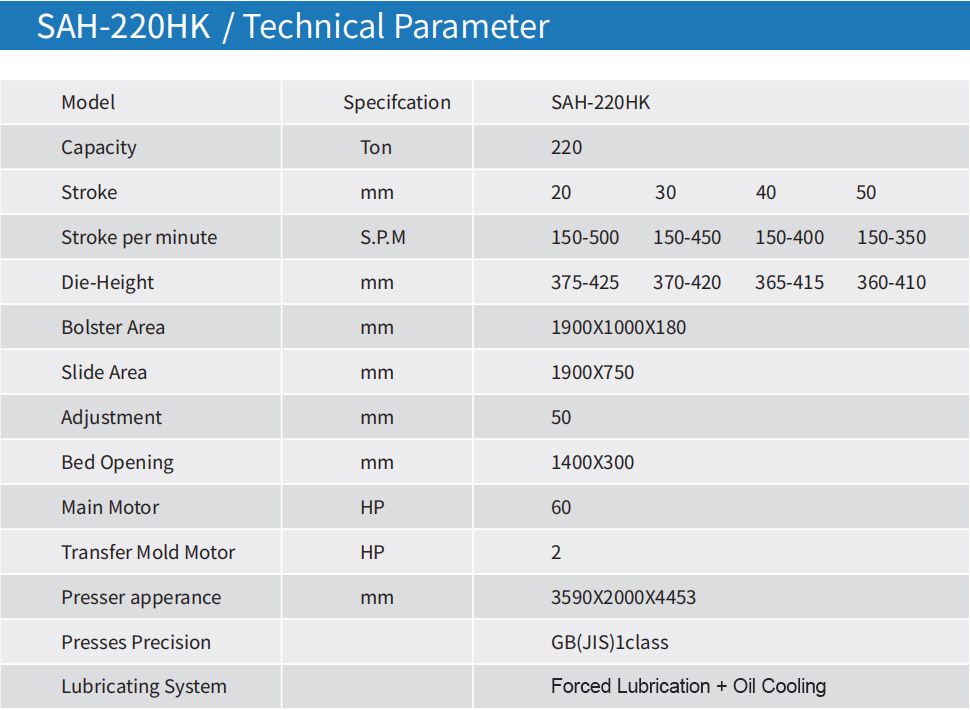

Technical Parameters

Model: SAH-220HK

Capacity:220 tons

Stroke: 20/30/40/50 mm

S.P.M.: 200-500

Die-Height: 360-425

Slide Area: 2000*700 mm

Bolster Area: 2000*950*180 mm

Main Motor: 40HP

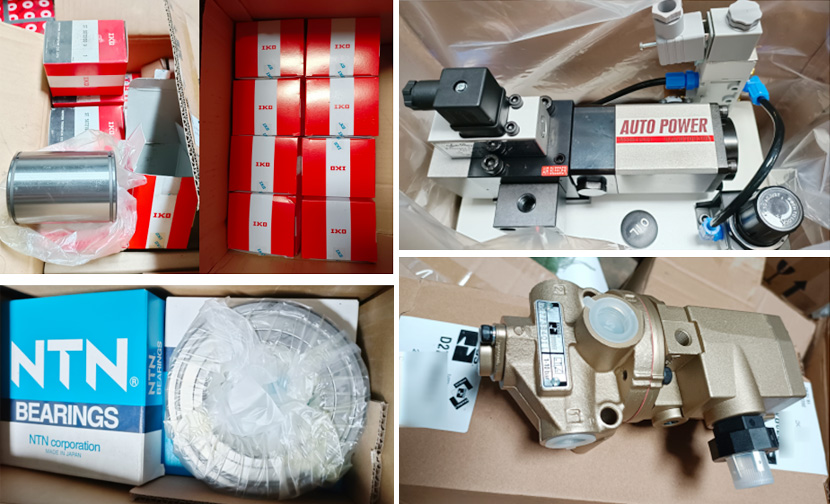

Standard Accessories

Dynamic balancing device, Magnetic valve (MAC), Lubrication’s system, Ease rise mold systematically, High pressure lock mold system, Bearings (NSK)

Choosing Samhoor High-Speed Punch Press means choosing a trustworthy partner. Our 220-ton high-speed punch press is far more than a product; it serves as a powerful tool to boost your competitiveness. Contact us now for more details and embark on a new chapter of efficient production!

I would like to request a quote for this 220T High-Speed Stamping Press

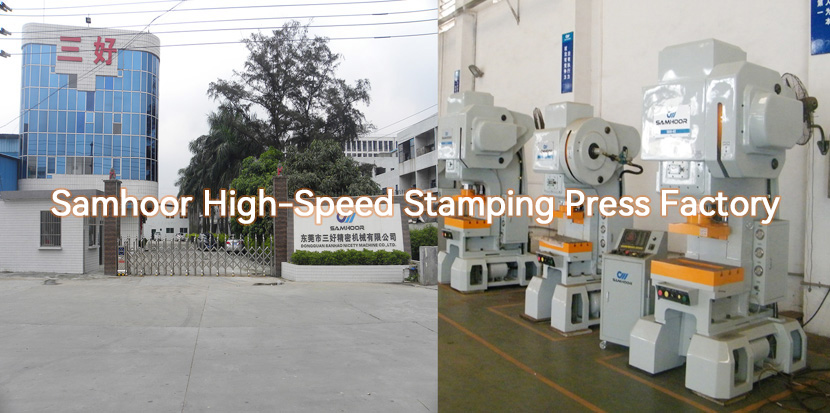

Customers focus on the stamping press machine factory

1. Look at the stamping press machine equipment, to learn the precision, speed, quality and production capacity of the punching machine;

2. To see the production process of high speed press like the screw washer stamping press machine: the use of raw materials, parts quality inspection, processing, finished product quality inspection process, packaging and so on.

3. Look at the punch press technology research and development capabilities: according to the customer's product specificity for research and development of suitable punch presses, such as fins high speed stamping press machine.

For the research and development ability, according to the actual situation to answer on the good, we Samhoor high speed press is a specialized R & D technicians, can be developed for the customer's unique products applicable to the high speed stamping press like the cooling fins stamping press machine.

4. Look at the delivery ability: many customers are concerned about the production capacity and delivery time of the high performance press, concerned about the delivery time, so as to meet the customer's other needs of the arrangement and so on.

High Speed Punching Machine

High Speed Press: H-Frame High-Speed Punching Machines

Tonnage: 30–220 Tons

Raw Materials: Metals such as copper and aluminum

SPM: 200–1000

Application Areas: Manufacturing Plant, Building Material Shops, Machinery Repair Shops, Energy & Mining, Construction Works, Other, Hotels, Food & Beverage Factory, Printing Shops, Advertising Company.
