Introduction to the H-Frame Gantry High-Speed Stamping Press

1. Made of high-strength cast iron, with stress relief treatment to ensure long-term precision.

2. Six-round guide post and dual-center post structure ensure stable production even under eccentric load conditions.

3. Combined with forced lubrication and oil cooling systems to minimize thermal deformation.

4. Equipped with a locking system for easier and more direct die clamping.

5. Features a high-performance vibration damping system to extend the press machine's lifespan and prevent external environmental interference.

6. Utilizes world-class digital frequency conversion technology to ensure product quality.

7. Top dead center stop device effectively protects the die and facilitates die setup.

8. The use of a microcomputer controller allows all information, such as press angle, speed, and fault location, to be displayed on an independent control console.

9. Additionally equipped with scrap detection, misfeed detection, blow-off system, and special-shaped scissors for more user-friendly operation.

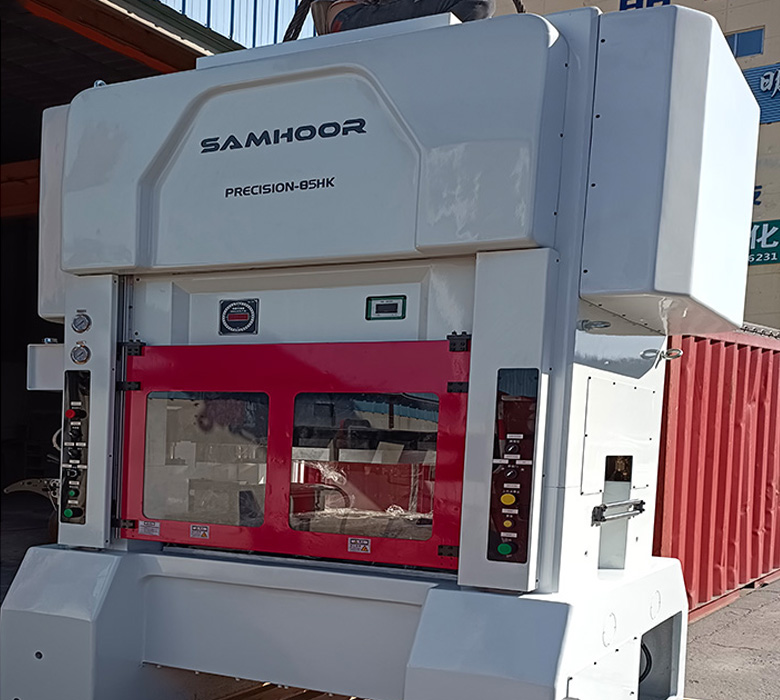

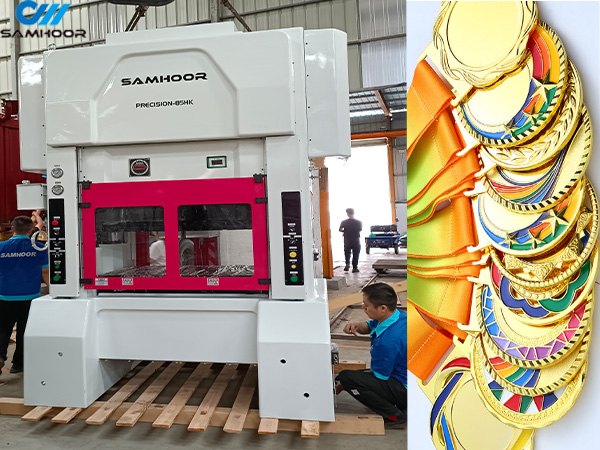

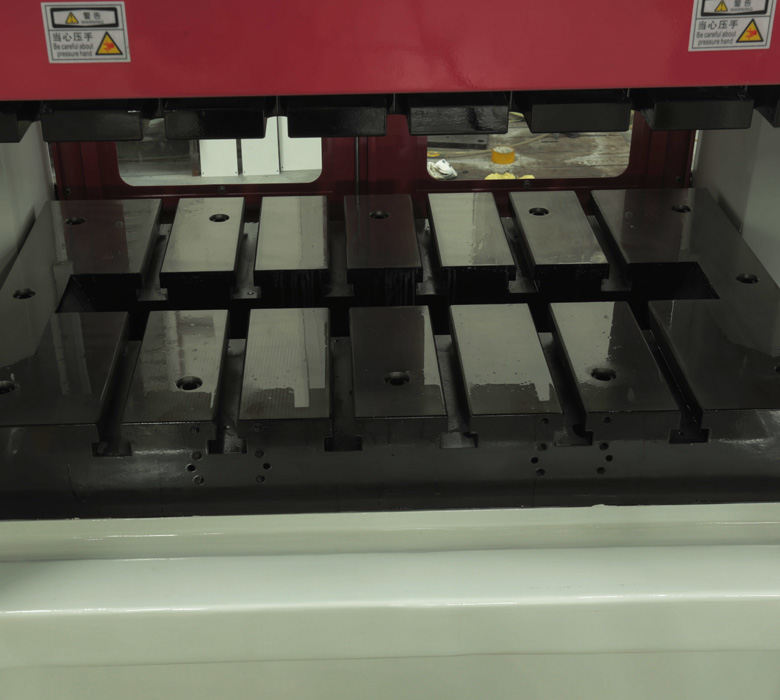

SAMHOOR Gantry Type 85 Ton Automatic High Speed Punch Press for Medals & Metal Sheet Stamping

Product Parameter

The Application of Sheet Metal Stamping Machines in the Production of Medals for the Paris 2024 Olympic Games

With the opening of the 2024 Paris Olympic Games, the world’s attention is once again drawn to this city brimming with romance and innovation. As a core component of international sporting events, Olympic medals serve not only as recognition of athletes’ relentless efforts but also as carriers of Olympic history and cultural heritage. During medal production, precision high-speed punching presses play an indispensable role in medal manufacturing thanks to their outstanding performance and ultra-high precision.

1. Sheet Metal High Speed Stamping Machine for efficient production: meeting the mass customization demands of medals

According to reports, the 2024 Paris Olympic Games are expected to attract hundreds of millions of spectators worldwide. This not only demonstrates people’s great enthusiasm for watching the competitions, but also reflects the huge demand for a large quantity of medals. Featuring fast processing speed, precise stamping performance and strong mass production capability, Samhoor’s sheet metal stamping presses can quickly meet such demand, enabling a large batch of medals to be stamped and formed within a short timeframe.

The automatic molding capability of high-speed presses not only improves the production efficiency of medal stamping, but also ensures the high quality and consistency of every medal, providing high-quality and exquisite medals for all winning athletes.

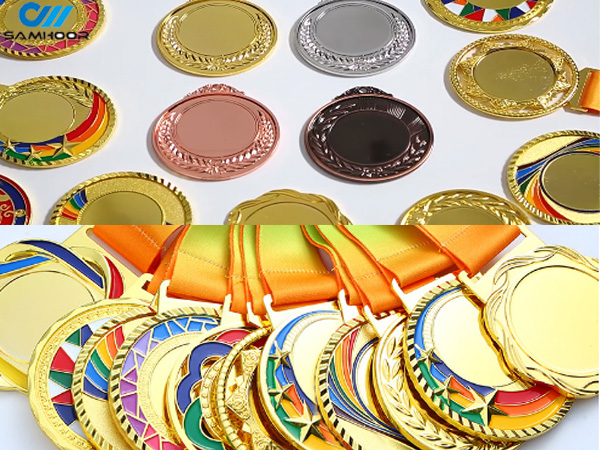

2. Precise medal engraving: inheriting the Olympic spirit and culture

Olympic medal designs often carry profound cultural significance and embody the Olympic spirit. With precise mold design and processing technology, Samhoor precision high-speed punching presses achieve accurate engraving of complex patterns and characters on medals. Whether it is olive branches symbolizing victory and peace or elements representing diverse cultures, the stamping machine can perfectly present these details with high precision and exquisite craftsmanship. This not only demonstrates the advanced performance of high-speed punching and sheet metal stamping machines, but also delivers the profound cultural connotation of each Olympic Games.

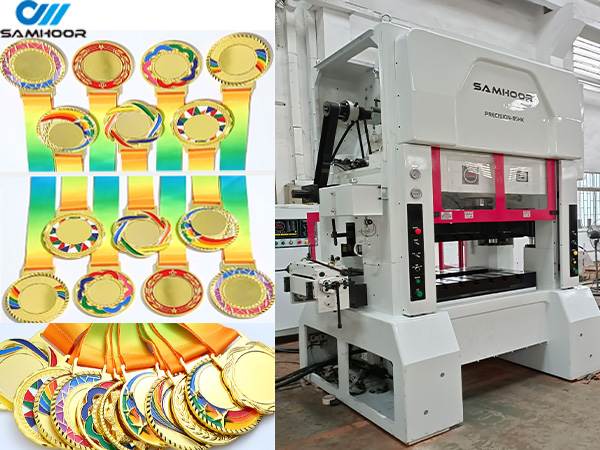

3. Green manufacturing: practicing sustainable development

Green development has attracted increasing global attention. The application of high-speed punching presses in medal manufacturing also reflects the pursuit of the green manufacturing concept. By adopting various environmentally friendly materials and optimizing the technical performance of Samhoor high-speed punching presses, the production process achieves green development, reduces production energy consumption, minimizes the waste of medal raw materials, and complies with environmental protection policies. High-speed punching and sheet metal stamping machines not only improve the production efficiency of medal stamping and forming, but also lower environmental impact, realizing the sustainable development concept advocated by the Olympic Games.

The production of Olympic medals is undoubtedly a perfect combination of technology and art, tradition and modernity. Featuring excellent performance and innovative application, high-speed punching presses and sheet metal stamping machines not only support the efficient production of Olympic medals, but also demonstrate the positive influence of technological progress on human society while inheriting the Olympic spirit. This is not only a grand sports event, but also a vivid display of the integration of technology and culture, leaving unforgettable memories for audiences worldwide.

Samhoor high-speed presses deliver outstanding performance and innovative applications to facilitate the efficient production of Olympic medals. Meanwhile, medal forming with high-speed punching machines carries forward the Olympic spirit and showcases the positive impact of technological advancement. Medal stamping realized via high-speed presses represents far more than a spectacular sports event; it is a vivid demonstration of the integration of technology and culture, leaving unforgettable memories for audiences around the world.

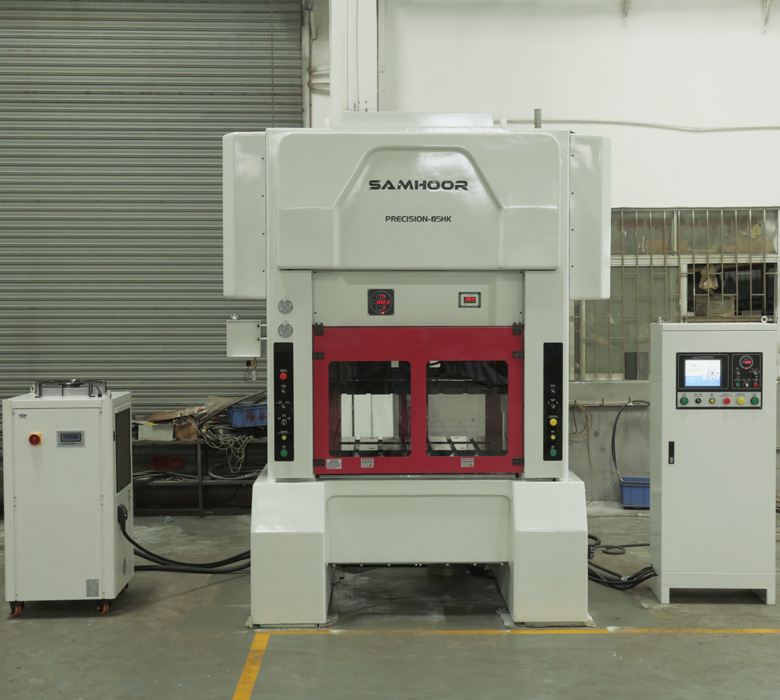

Gantry Type 85 Ton High Speed Stamping Machine for Medals & Metal Badge Mass Production

In modern manufacturing, efficiency and precision are the keys to competitiveness. The Gantry H-Type 85 Ton Automatic High-Speed Punch Press from Samhoor High-Speed Punch Press Company is designed to meet this demand. This punch press not only boasts a powerful 85-ton punching force but also features an advanced automatic control system, ensuring high efficiency and precision in the production process.

Efficient production: The Gantry H-frame 85 tons automatic high-speed punching machine delivers excellent performance and greatly improves production efficiency. It adopts Taiwan punch press technology to ensure that your production line always runs efficiently.

Precision machining: Precision is the guarantee of product quality. Our power presses are equipped with a high precision guide system and a stable six-column guide body structure, ensuring that every stamping process can meet the highest precision requirements and satisfy your ultimate pursuit of product details.

Automatic Operation: Automation is the trend in modern manufacturing. The Gantry H-Type 85 Ton Automatic High-Speed Punch Press is equipped with an intelligent automatic feeding and discharging system, which not only reduces manual operation but also significantly lowers error rates in the production process and improves production stability and reliability.

Who Ordered Another Gantry 85 Ton Punch Press?

The new owner of the gantry-type 85-ton punch press is from Yemen. This customer mainly produces game coins for major supermarkets, featuring large output and high market demand. Having learned that Samhoor high-precision punch presses deliver reliable quality, he visited our punching machine factory for the first time in March 2023 to inspect the equipment and discuss key concerns, including quality control, delivery time, and after-sales service. After a thorough understanding of our products and services, the customer issued a purchase order for a customized 85-ton sheet metal high-speed punch press the next day.

Customer Acceptance of Punch Press

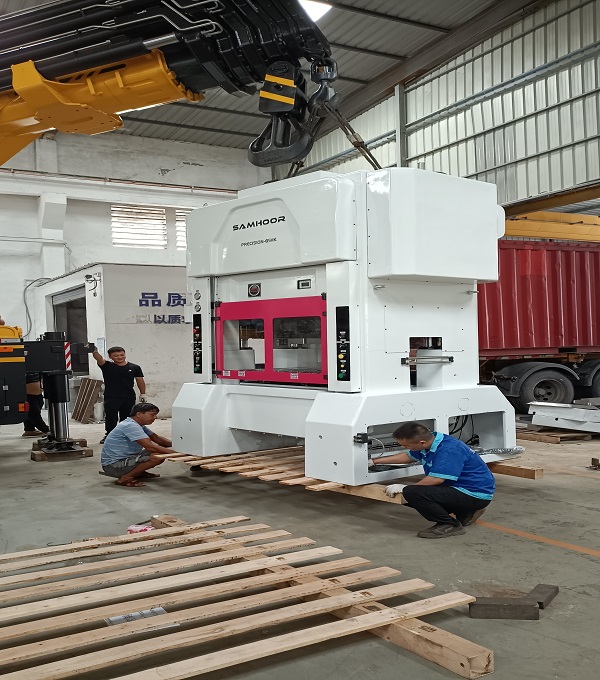

The production of 4 sets of gantry-type 85-ton high-speed punch presses was successfully completed after 70 days of production. The customer visited the Samhoor factory for the acceptance of the 85-ton H-frame punch presses. He first inspected the equipment appearance, followed by testing the core components of the punch press, including the slider, bearings, flywheel and other parts, before conducting the overall final acceptance. After the inspection, the customer was highly satisfied with our high-precision punch presses and requested us to arrange loading and delivery immediately.

High Speed Punching Machine

High Speed Press: H-Frame High-Speed Punching Machines

Tonnage: 30–220 Tons

Raw Materials: Metals such as copper and aluminum

SPM: 200–1000

Application Areas: Manufacturing Plant, Building Material Shops, Machinery Repair Shops, Energy & Mining, Construction Works, Other, Hotels, Food & Beverage Factory, Printing Shops, Advertising Company.
