80 Ton High Speed Stamping Press for Auto Medical Hardware Metal Parts Production

Introduction to the C-Type High-Speed Punch Press

1. Made of high-strength cast iron, with stress relief treatment to ensure long-term precision.

2. Three-round guide post design minimizes dynamic friction to the lowest level.

3. Equipped with a locking system for easier and more direct die clamping.

4. Features a high-performance vibration damping system to extend the press machine's lifespan and prevent external environmental interference.

5. Utilizes world-class digital frequency conversion technology to ensure product quality.

6. The use of a microcomputer controller allows all information, such as press angle, speed, and fault location, to bedisplayed on an independent control console.

7. Additionally equipped with scrap detection, misfeed detection, blow-off system, and special-shaped scissors formore user-friendly operation.

80 Tons Automatic high speed punching machine, precision manufacturing technology, highly sensitive clutch brake device, quick and accurate response to operating instructions, fast start acceleration, instant braking when stopped, fast state conversion, saving production time. The electromagnetic switch of the High Speed Punching Machine for Fins clutch is controlled by the solenoid valve, with high precision and high speed. Even in extreme working conditions or emergencies, it can ensure the reliable switching of the solenoid valve and effectively prevent production interruptions caused by single component failure. Samhoor brand high-speed presses are often purchased and widely used in high-speed stamping of various small precision metal parts such as radiator fins, submersible pumps, deep well pumps, etc., precision electronics, communications, computers, household appliances, clocks, auto parts, various motor rotors, photographic equipment, etc. Professional stamping precision terminal products.

The 80 Tons automatic High Speed Punching Machine has a high level of safety protection. As a high-quality supplier of 80t Precision High Speed Punch Machine, samhoor brand high-speed punching machine adopts a closed electrical circuit design. The closed environment can effectively isolate the pollution of dust, moisture, corrosive gases and other gases in the external environment. The components inside the electrical circuit will be better protected. The safety design concept not only meets the strict requirements for safe production, but also provides an effective guarantee for the long-term stable operation of the high-speed punching machine.

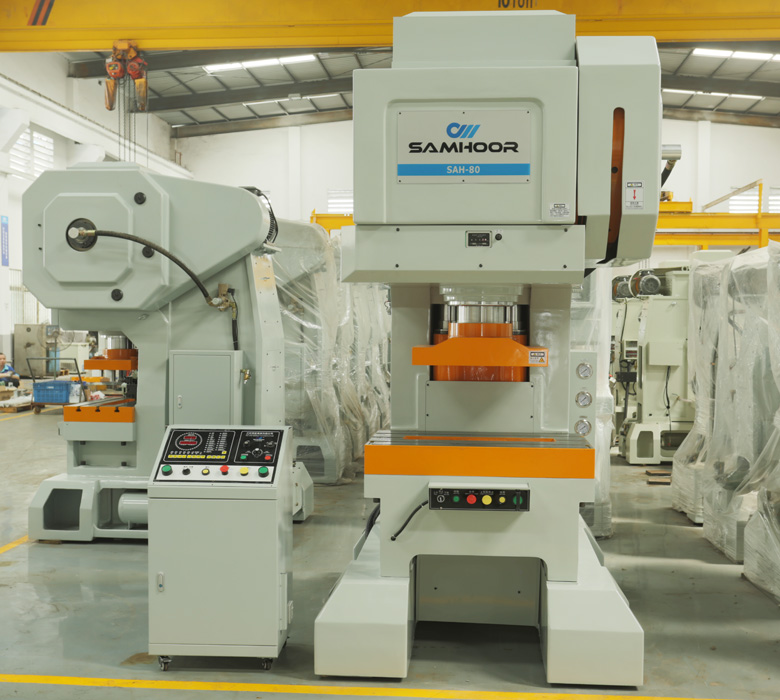

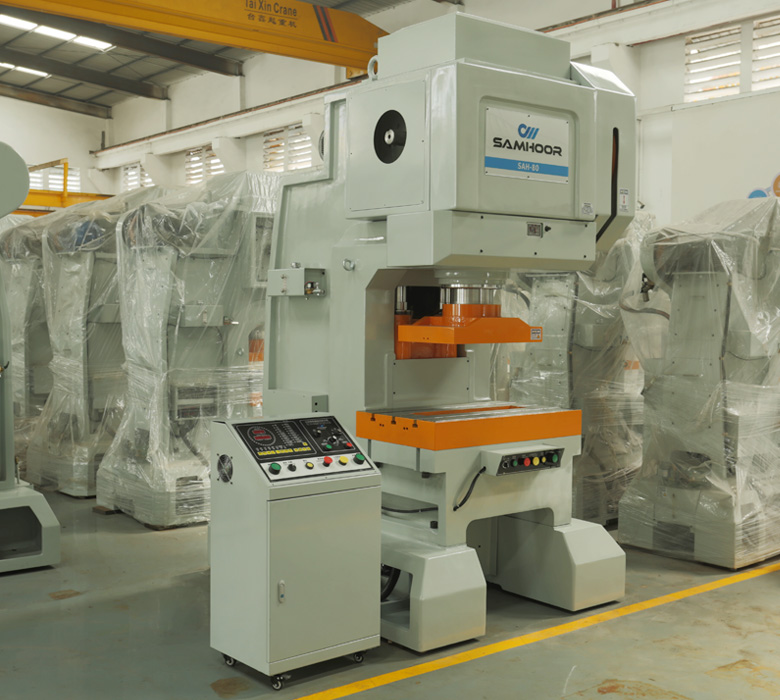

SAMHOOR 80Ton High Speed Stamping Press

Product Parameter

Main Specification	Unit	Parameter
Capacity	Ton	80
Stroke	mm	30	40	50	60
Stroke Per Minute	S.P.M	150-500	150-500	150-450	150-400
Die-Hight	mm	315-365	310-360	305-355	300-350
Slide Adjustment	mm	50
Slide Area	mm	600*420
Bolster Area	mm	1000*600*130
Bed Opening	mm	580*130
Main Motor	HP	20
Transfer Mold Motor	HP	1/4
Presses Dimension	mm	1900*1400*2870
Presses Precision		GB(JIS) 1 Class

Product Advantages

1. Adopting advanced industrial design concepts, the machine features low noise, low power consumption and excellent energy-saving performance.

2. High-strength cast iron is adopted, which is highly resistant to slight vibration, guaranteeing stamping precision and long service life.

3. It adopts a microcomputer control system with fewer peripheral electrical components and high stability. Operators can disassemble the press control board for easy maintenance.

4. A hydraulic overload protector equipped with a clutch brake is supplied as standard, which can trigger an immediate emergency stop to provide maximum protection for the press and dies.

5. The machine adopts an MPA oil lubrication system imported from the United States, which fully meets high-speed lubrication requirements, reduces press oil leakage and keeps the equipment clean.

6. It is equipped with American MAC low-voltage solenoid valves featuring low temperature rise, low noise and an operating speed of up to 12,000 times per minute.

7. It adopts the Duplex air filtration system from Taiwan to filter out moisture in the air, ensure that the press’s pneumatic components stay dry and prolong their service life.

What places are suitable for the application of heat sink stamping parts?

1. Computer fields: computer motherboards, PCs, IPCs, Servers, PCTVs, Routers, Power Supplies (CPU coolers, VGA coolers, cooling fans).

2. Machinery equipment: industrial equipment, medical devices, auto spare parts, household appliances, etc.

3. LED lighting: stage lights, high bay lights, down lights, street lights, automobile lamps, etc.

4. Security fields: security cameras, infrared illuminated cameras.

5. Home appliances: pico projectors, electronic refrigerators, wine coolers, laser TVs, LCD TVs, LED panels, audio equipment, air conditioners, induction cookers, etc.

Frequenty Asked Questions

Q1. Are you a factory or a trading company?
A1. SaHmoor is a professional manufacturer of high-speed punching machines, boasting over 19 years of experience in the R&D and manufacturing of such equipment. We also have a dedicated trading team that provides import and export services for our products, enabling us to offer you a one-stop procurement solution.

Q2. Do you accept customized orders in your factory?
A2. Yes. We can conduct R&D and production according to customers' requirements, and customize high-speed stamping presses to meet your specific needs.

Q3. Can you help me design a complete stamping production line?
A3. Yes. Please provide the product drawings, and we will offer you the optimal solution.

Q4. Does your factory offer mold customization?
A4. Yes, we can provide and configure stamping dies for high-speed punching machines as per customers’ needs.

Q5. What is your factory's shortest delivery lead time?
A5. The shortest delivery lead time for high-speed presses depends on the complexity of the customer's product and delivery requirements.

Q6. Does SamHoor send engineers to install and commission the equipment on site?
A6. Yes, we have engineers responsible for installation and commissioning, as well as providing comprehensive after-sales service.

Warranty and Service

1. Our press punching machine comes with a full one-year (12-month) warranty. Our company provides after-sales service for the products starting from the buyer's final acceptance date, with a one-year warranty period. (Excluding damage caused by the buyer's improper operation or human error.)

2. We can arrange engineers to provide on-site service, installation and training.

3. All safety warning labels and control panels are in English.

4. An English operation and maintenance manual is supplied together with the press.

5. Technical Support: We offer technical support via email or video. Our technicians are available for overseas service at reasonable extra charges.

6. Installation & Commissioning: The seller may send technicians to carry out installation and commissioning, and the relevant technician expenses shall be borne by the buyer.

APPLICATION AREAS

Silicon Steel Sheet Laminated EI lamination Punch Press

High-speed precision punching machine is a type of metal processing equipment, which is mainly applied to stamping, blanking, piercing, forming and moulding processes. It has a wide range of application scenarios, including the stamping of automotive terminal connectors, mobile phone and computer heat sinks, battery shrapnels, hardware components, motor rotors and stators, EI laminations and other products. The following is a case study of a C-type high-speed punching machine used for stamping silicon steel sheet EI laminations.

The customer provides product drawings, based on which we select the suitable punching machine and feeder. Combined with high-speed dies, the equipment realizes the stamping of EI laminations. Firstly, qualified metal strip raw materials are adopted. The materials are sent to the high-speed punching machine via automatic feeding for stamping inside the die. With the coordinated operation of dies and punching machines, finished products such as automotive terminal connectors and motor laminations are produced. The finished workpieces are conveyed out by a conveyor belt for collection and inspection.

One prominent advantage of high-speed precision punching machines for processing terminal connectors and EI laminations lies in fast stamping speed, high precision and stable product quality. Such equipment can greatly boost production efficiency and improve the overall operational efficiency of enterprises.

High Speed Punching Machine

High Speed Press: C-type High-Speed Punching Machines

Tonnage: 30–80 Tons

Raw Materials: Metals such as copper and aluminum

SPM: 200–1000

Application: Air conditioning heating pipe fins
