Introduction to the H-Frame Gantry High-Speed Stamping Press

1. Made of high-strength cast iron, with stress relief treatment to ensure long-term precision.

2. Six-round guide post and dual-center post structure ensure stable production even under eccentric load conditions.

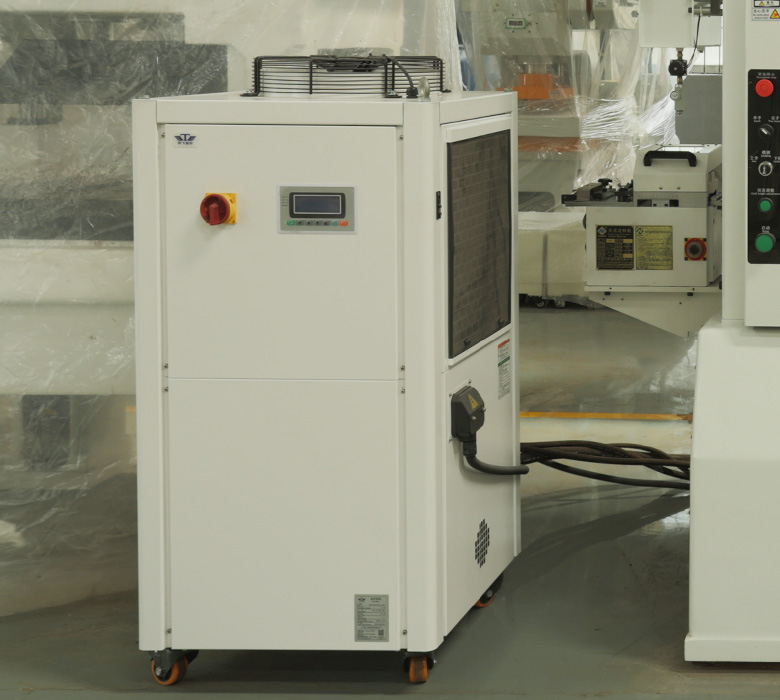

3. Combined with forced lubrication and oil cooling systems to minimize thermal deformation.

4. Equipped with a locking system for easier and more direct die clamping.

5. Features a high-performance vibration damping system to extend the press machine's lifespan and prevent external environmental interference.

6. Utilizes world-class digital frequency conversion technology to ensure product quality.

7. Top dead center stop device effectively protects the die and facilitates die setup.

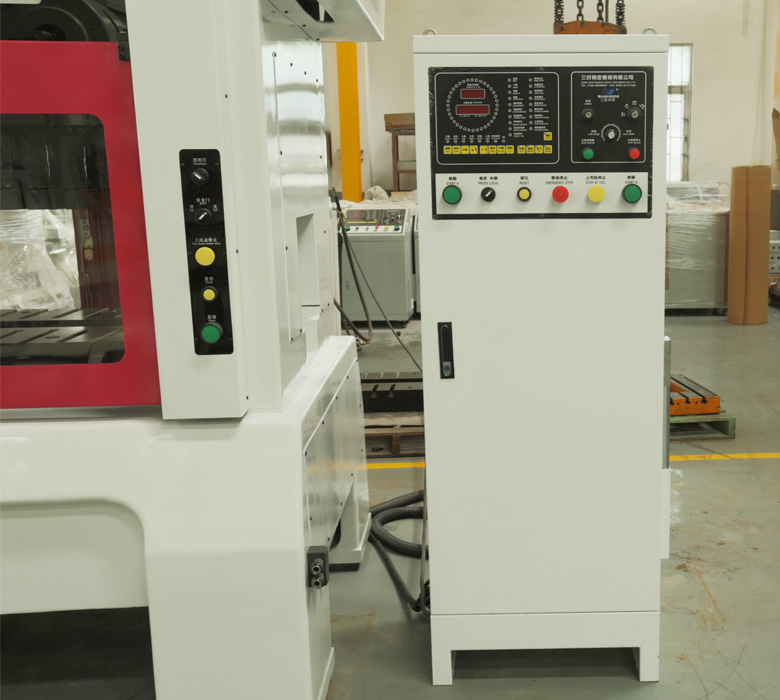

8. The use of a microcomputer controller allows all information, such as press angle, speed, and fault location, to be displayed on an independent control console.

9. Additionally equipped with scrap detection, misfeed detection, blow-off system, and special-shaped scissors for more user-friendly operation.

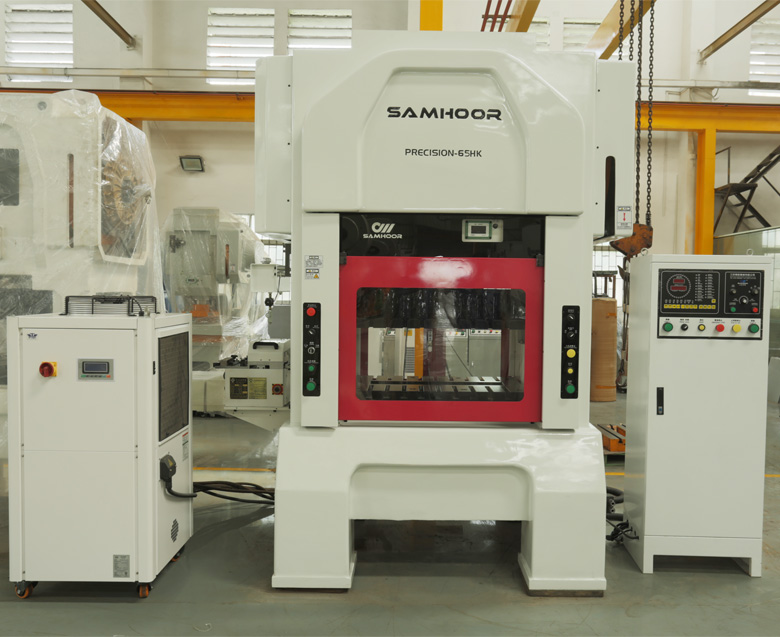

SAMHOOR 65 Ton Gantry Type High Speed Punch Press | Metal Five Claw Buckle Stamping Machine

Product Parameter

Main Specification	Unit	Parameter
Capacity	Ton	65
Stroke	mm	20	30	40	50
Stroke Per Minute	S.P.M	200-700	200-600	200-550	200-500
Die-Hight	mm	275-315	270-310	265-305	260-300
Slide Adjustment	mm	40
Slide Area	mm	900*450
Bolster Area	mm	950*650*140
Bed Opening	mm	650*130
Main Motor	HP	20
Transfer Mold Motor	HP	1/4
Lubricating System		Forced Lubrication's system and Cooling machine
Avoid Shake System		SAHA Prevent Quake Foot
Presses Dimension	mm	2180*1650*2750
Presses Precision		GB(JIS) 1 Class

H-Frame 65 tons razor wire Stamping Press Machine orders continue, and our brand's business is also advancing in an orderly manner. Like every quarter of previous years, this time is always particularly exciting, because there is always a group of loyal old customers who will send repurchase orders at this time based on their recognition and trust in the excellent use of our brand Stamping Press for Razor Wire. These Stamping Press Machines have long established a good reputation in the industry with their stable performance, efficient output and durable quality, and have become an indispensable production tool in the hearts of many users. Therefore, every time the festive season is approaching, we not only welcome consultations and attempts from new customers, but also welcome a wave of additional purchases from old users. This is the best affirmation of the strength and service of our brand Press Machine, and it is also a powerful driving force for us to keep moving forward.

Samhoor's H-Frame 65 tons razor wire stamping press machine is undoubtedly an option worth considering. When choosing a suitable stamping press machine, many factors need to be considered comprehensively. Only with a comprehensive and in-depth understanding of these factors can you make the best choice of Punch Press that suits your needs. For those companies that strive to achieve efficient production and pursue precise processing quality, choosing Samhoor high-speed Punch Presses with integrated CNC technology is undoubtedly a wise and forward-looking decision.

Fully automatic H-frame Razor Wire Stamping Press Machine are precisely defined with a press pressure range of 30 to 220 tons, a characteristic unique to many press facilities. Such equipment not only integrates the essence of modern digital control technology, but also is designed with its compact and reasonable volume, making it an integral part of many production lines. Especially in the precision processing field of small parts, the fully automatic NC low tonnage high-speed press has high-speed operation performance and excellent machining accuracy. Fully automatic Stamping Press for Razor Wire excels in precision processing of small parts, but its production capacity is limited. Due to their limited press range, these presses may not be suitable for handling large workpieces or production needs that require high presses. Therefore, when choosing to use such equipment, it is necessary to fully consider the actual situation of the production task, to ensure that the equipment can meet the production requirements, and to avoid unnecessary waste and loss. Samhoor factory produces high quality stamping press The machine is reliable and has a complete after-sales service system. In today's highly competitive market environment, high-quality after-sales service can not only improve customer satisfaction, but also is an important yardstick for measuring the comprehensive strength of a manufacturer. Therefore, when choosing a High Speed Stamping Machine manufacturer, in addition to paying attention to the performance and quality of the product, customers must also carefully confirm whether the manufacturer has a professional service outlet in the region. The importance of this is self-evident, because it is directly related to whether the equipment can get timely and effective technical support and repair services when it fails.

The establishment of a service outlet means that the manufacturer has a quick response mechanism, which can respond to the customer's urgent needs at the first time and send experienced technicians to the site for troubleshooting and repair. This ability to efficiently handle equipment failures is essential to ensure the continuous and stable operation of the production line, and can effectively avoid production losses caused by equipment downtime.

Product Advantages

1. Adopting advanced industrial design concepts, the machine features low noise, low power consumption and excellent energy-saving performance.

2. High-strength cast iron is adopted, which is highly resistant to slight vibration, guaranteeing stamping precision and long service life.

3. It adopts a microcomputer control system with fewer peripheral electrical components and high stability. Operators can disassemble the press control board for easy maintenance.

4. A hydraulic overload protector equipped with a clutch brake is supplied as standard, which can trigger an immediate emergency stop to provide maximum protection for the press and dies.

5. The machine adopts an MPA oil lubrication system imported from the United States, which fully meets high-speed lubrication requirements, reduces press oil leakage and keeps the equipment clean.

6. It is equipped with American MAC low-voltage solenoid valves featuring low temperature rise, low noise and an operating speed of up to 12,000 times per minute.

7. It adopts the Duplex air filtration system from Taiwan to filter out moisture in the air, ensure that the press’s pneumatic components stay dry and prolong their service life.

Frequenty Asked Questions

Q1. Are you a factory or a trading company?
A1. SaHmoor is a professional manufacturer of high-speed punching machines, boasting over 19 years of experience in the R&D and manufacturing of such equipment. We also have a dedicated trading team that provides import and export services for our products, enabling us to offer you a one-stop procurement solution.

Q2. Do you accept customized orders in your factory?
A2. Yes. We can conduct R&D and production according to customers' requirements, and customize high-speed stamping presses to meet your specific needs.

Q3. Can you help me design a complete stamping production line?
A3. Yes. Please provide the product drawings, and we will offer you the optimal solution.

Q4. Does your factory offer mold customization?
A4. Yes, we can provide and configure stamping dies for high-speed punching machines as per customers’ needs.

Q5. What is your factory's shortest delivery lead time?
A5. The shortest delivery lead time for high-speed presses depends on the complexity of the customer's product and delivery requirements.

Q6. Does SamHoor send engineers to install and commission the equipment on site?
A6. Yes, we have engineers responsible for installation and commissioning, as well as providing comprehensive after-sales service.

Warranty and Service

1. Our press punching machine comes with a full one-year (12-month) warranty. Our company provides after-sales service for the products starting from the buyer's final acceptance date, with a one-year warranty period. (Excluding damage caused by the buyer's improper operation or human error.)

2. We can arrange engineers to provide on-site service, installation and training.

3. All safety warning labels and control panels are in English.

4. An English operation and maintenance manual is supplied together with the press.

5. Technical Support: We offer technical support via email or video. Our technicians are available for overseas service at reasonable extra charges.

6. Installation & Commissioning: The seller may send technicians to carry out installation and commissioning, and the relevant technician expenses shall be borne by the buyer.

Customers focus on the stamping press machine factory

1. Look at the stamping press machine equipment, to learn the precision, speed, quality and production capacity of the punching machine;

2. To see the production process of high speed press like the screw washer stamping press machine: the use of raw materials, parts quality inspection, processing, finished product quality inspection process, packaging and so on.

3. Look at the punch press technology research and development capabilities: according to the customer's product specificity for research and development of suitable punch presses, such as fins high speed stamping press machine.

For the research and development ability, according to the actual situation to answer on the good, we Samhoor high speed press is a specialized R & D technicians, can be developed for the customer's unique products applicable to the high speed stamping press like the cooling fins stamping press machine.

4. Look at the delivery ability: many customers are concerned about the production capacity and delivery time of the high performance press, concerned about the delivery time, so as to meet the customer's other needs of the arrangement and so on.

High Speed Punching Machine

High Speed Press: H-Frame High-Speed Punching Machines

Tonnage: 30–220 Tons

Raw Materials: Metals such as copper and aluminum

SPM: 200–1000

Application Areas: Manufacturing Plant, Building Material Shops, Machinery Repair Shops, Energy & Mining, Construction Works, Other, Hotels, Food & Beverage Factory, Printing Shops, Advertising Company.
