Introduction to the H-Frame Gantry High-Speed Stamping Press

1. Made of high-strength cast iron, with stress relief treatment to ensure long-term precision.

2. Six-round guide post and dual-center post structure ensure stable production even under eccentric load conditions.

3. Combined with forced lubrication and oil cooling systems to minimize thermal deformation.

4. Equipped with a locking system for easier and more direct die clamping.

5. Features a high-performance vibration damping system to extend the press machine's lifespan and prevent external environmental interference.

6. Utilizes world-class digital frequency conversion technology to ensure product quality.

7. Top dead center stop device effectively protects the die and facilitates die setup.

8. The use of a microcomputer controller allows all information, such as press angle, speed, and fault location, to be displayed on an independent control console.

9. Additionally equipped with scrap detection, misfeed detection, blow-off system, and special-shaped scissors for more user-friendly operation.

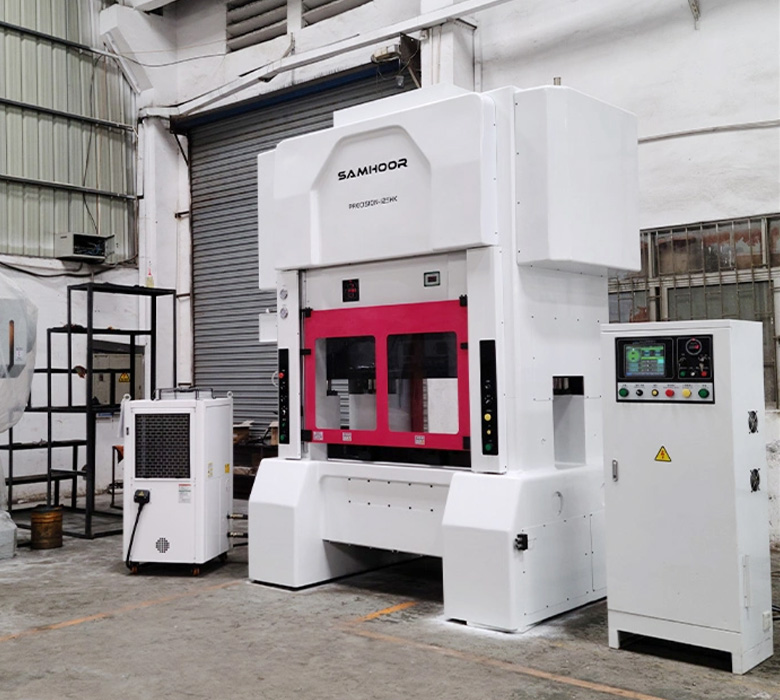

200 Ton High Speed Stamping Machine for Home Appliance & New Energy Hardware Parts

Product Parameter

Main Specification	Unit	Parameter
Capacity	Ton	200
Stroke	mm	20	30		40	50
Stroke Per Minute	S.P.M	200-500	200-450		200-400	200-350
Die-Hight	mm	360-410	355-405		350-400	345-395
Slide Adjustment	mm	50
Slide Area	mm	1600*700
Bolster Area	mm	1700*950*180
Bed Opening	mm	1400*280
Main Motor	HP	40
Transfer Mold Motor	HP	1/4
Lubricating System		Forced Lubrication's system and Cooling machine
Avoid Shake System		SAHA Prevent Quake Foot
Presses Dimension	mm	3100*2200*3750
Presses Precision		GB(JIS) 1 Class

Production Notice

In addition to choosing high manufacturing accuracy, a reasonable die structure, good heat treatment effects and the correct selection of die accuracy, proper die usage and die maintenance are also very important links.

The following points should be given greater attention:

1. The most important thing is to use the die equipment strictly and correctly.

2.Check the rotating disc and the mounting base of the die on a regular basis to guarantee the coaxial accuracy of the upper and lower rotating discs.

3. After the die is installed, please remember to check whether the fastening screw of the installation base of the die is locked correctly.

4. If the edge of punch and concave die is worn out, you ought to stop using it and grind it in time. Otherwise, the wear degree of the die edge will expand rapidly, the wear of the die will be accelerated, and the processing quality of the High Speed Stamping Machine and the service life of the die will be reduced.

5. The mould should be put back to the designated position in time after use, and be coated with anti-rust oil for rust prevention immediately.

6. To guarantee the service life of the die, the spring of the die should be replaced regularly, which can greatly prevent the fatigue damage of the spring from affecting the use of the die.

7. Last but not least, whether you are using any dies at that time or not, please ensure your own safety.

Product Advantages

1. Adopting advanced industrial design concepts, the machine features low noise, low power consumption and excellent energy-saving performance.

2. High-strength cast iron is adopted, which is highly resistant to slight vibration, guaranteeing stamping precision and long service life.

3. It adopts a microcomputer control system with fewer peripheral electrical components and high stability. Operators can disassemble the press control board for easy maintenance.

4. A hydraulic overload protector equipped with a clutch brake is supplied as standard, which can trigger an immediate emergency stop to provide maximum protection for the press and dies.

5. The machine adopts an MPA oil lubrication system imported from the United States, which fully meets high-speed lubrication requirements, reduces press oil leakage and keeps the equipment clean.

6. It is equipped with American MAC low-voltage solenoid valves featuring low temperature rise, low noise and an operating speed of up to 12,000 times per minute.

7. It adopts the Duplex air filtration system from Taiwan to filter out moisture in the air, ensure that the press’s pneumatic components stay dry and prolong their service life.

Frequenty Asked Questions

Q1. Are you a factory or a trading company?
A1. SaHmoor is a professional manufacturer of high-speed punching machines, boasting over 19 years of experience in the R&D and manufacturing of such equipment. We also have a dedicated trading team that provides import and export services for our products, enabling us to offer you a one-stop procurement solution.

Q2. Do you accept customized orders in your factory?
A2. Yes. We can conduct R&D and production according to customers' requirements, and customize high-speed stamping presses to meet your specific needs.

Q3. Can you help me design a complete stamping production line?
A3. Yes. Please provide the product drawings, and we will offer you the optimal solution.

Q4. Does your factory offer mold customization?
A4. Yes, we can provide and configure stamping dies for high-speed punching machines as per customers’ needs.

Q5. What is your factory's shortest delivery lead time?
A5. The shortest delivery lead time for high-speed presses depends on the complexity of the customer's product and delivery requirements.

Q6. Does SamHoor send engineers to install and commission the equipment on site?
A6. Yes, we have engineers responsible for installation and commissioning, as well as providing comprehensive after-sales service.

Warranty and Service

1. Our press punching machine comes with a full one-year (12-month) warranty. Our company provides after-sales service for the products starting from the buyer's final acceptance date, with a one-year warranty period. (Excluding damage caused by the buyer's improper operation or human error.)

2. We can arrange engineers to provide on-site service, installation and training.

3. All safety warning labels and control panels are in English.

4. An English operation and maintenance manual is supplied together with the press.

5. Technical Support: We offer technical support via email or video. Our technicians are available for overseas service at reasonable extra charges.

6. Installation & Commissioning: The seller may send technicians to carry out installation and commissioning, and the relevant technician expenses shall be borne by the buyer.

Customers focus on the stamping press machine factory

1. Look at the stamping press machine equipment, to learn the precision, speed, quality and production capacity of the punching machine;

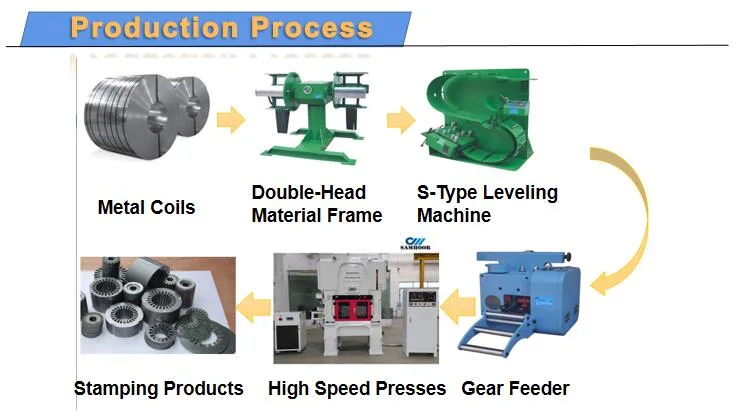

2. To see the production process of high speed press like the screw washer stamping press machine: the use of raw materials, parts quality inspection, processing, finished product quality inspection process, packaging and so on.

3. Look at the punch press technology research and development capabilities: according to the customer's product specificity for research and development of suitable punch presses, such as fins high speed stamping press machine.

For the research and development ability, according to the actual situation to answer on the good, we Samhoor high speed press is a specialized R & D technicians, can be developed for the customer's unique products applicable to the high speed stamping press like the cooling fins stamping press machine.

4. Look at the delivery ability: many customers are concerned about the production capacity and delivery time of the high performance press, concerned about the delivery time, so as to meet the customer's other needs of the arrangement and so on.

High Speed Punching Machine

High Speed Press: H-Frame High-Speed Punching Machines

Tonnage: 30–220 Tons

Raw Materials: Metals such as copper and aluminum

SPM: 200–1000

Application Areas: Manufacturing Plant, Building Material Shops, Machinery Repair Shops, Energy & Mining, Construction Works, Other, Hotels, Food & Beverage Factory, Printing Shops, Advertising Company.
